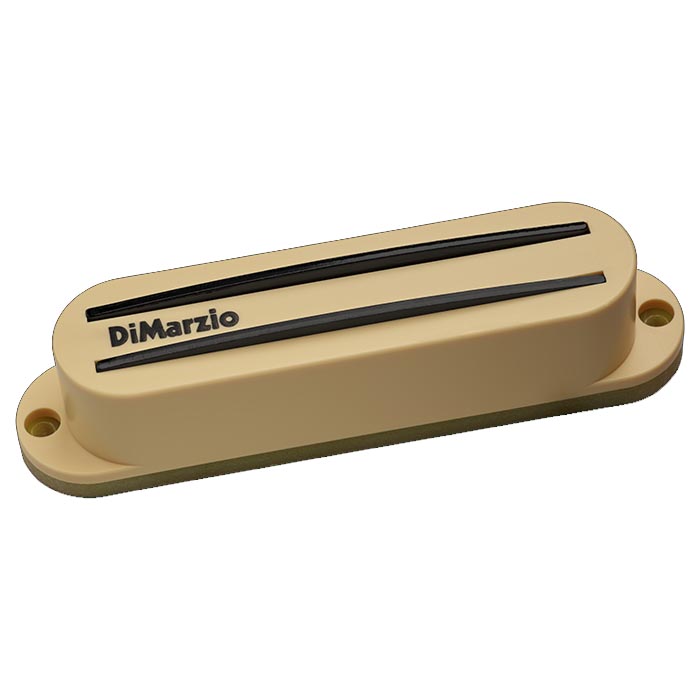

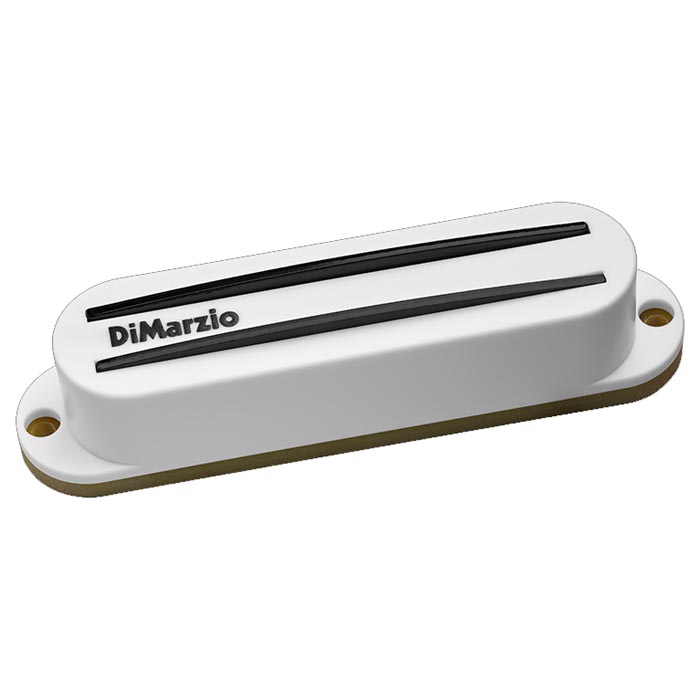

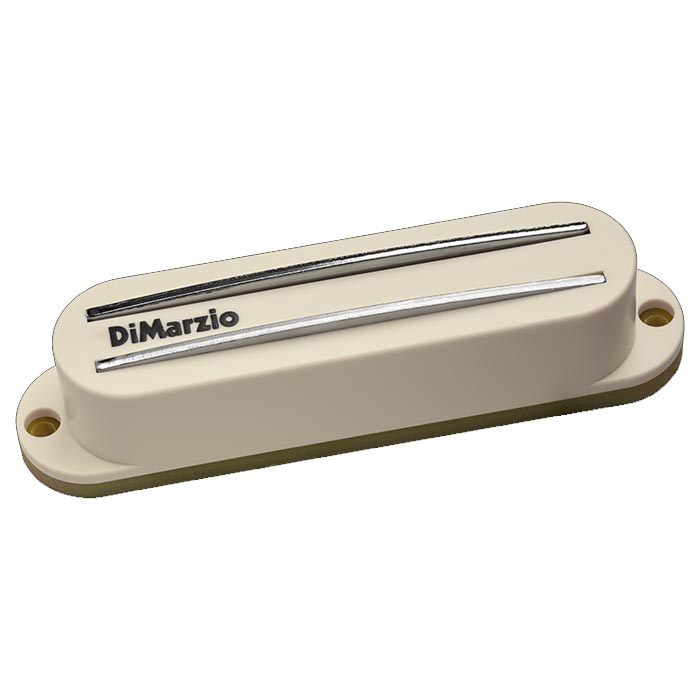

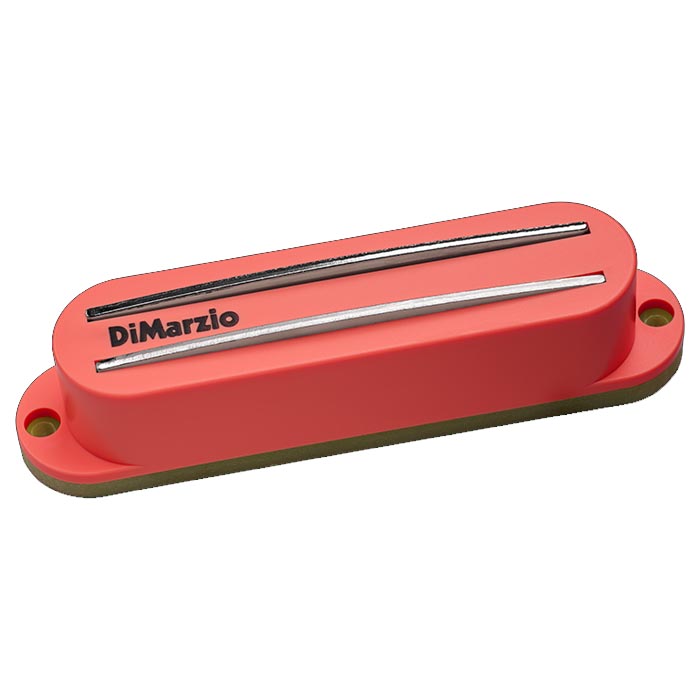

DiMarzio Air Norton S DP180
The Air Norton S takes one of DiMarzio’s most respected full size humbuckers and packages it into a Strat sized footprint. For players who want the warmth and body of a humbucker without modifying a traditional single coil rout, it gets my attention. It is a rail style, hum canceling pickup that promises to deliver smooth lead tones, balanced clean sounds, and enough output to cover everything from classic rock to modern high gain.
A lot of single space humbuckers end up chasing one extreme or the other. They’re either trying to sound like an old Strat pickup, or they’re trying to melt the front end of your amp. The Air Norton S aims for the middle ground. It is designed to retain clarity while offering enough muscle to push an amp without becoming overly compressed. DiMarzio also builds the pickup with enough flexibility to work in either the neck or bridge position, depending on the needs of the guitar.
Dual Resonance Technology
The Satchur8 uses DiMarzio Dual Resonance design, which changes the way the coils interact with each other.
Dual Resonance is basically mis-matched coils. It’s common for several pickup companies to allow about a 5% variance. But Dual Resonance is an intentional mis-matching of the coils to produce a specific “tuning” of the pickup’s voice. According to the patent, it is pretty much about putting a similar number of turns on each coil. But with different wire gauges.
In the image below, you will see that the left bobbin has a skinnier wind than the right bobbin. Yet both bobbins have a similar number of turns. It is the wire gauge that is different. With the left coil using the smaller gauge and the right using the larger.
courtesy of Guitar Pickup Database
Installation
Physically, the Air Norton S installs like any standard Strat sized pickup. There are no surprises during the installation process. The rail design provides consistent string coverage regardless of string bends or vibrato use. Players using a Floyd Rose or other floating tremolo will appreciate that wide bends never outrun the magnetic field.
Output balances easily with other modern pickups. Pickup height adjustments make a noticeable difference. This allows the overall response to be tailored from slightly softer and more open to tighter with additional attack. As with most DiMarzio pickups, small adjustments are worthwhile before settling on a final height.
The compact footprint also makes the Air Norton S an attractive choice for anyone looking to expand the tonal range of an existing Strat style guitar without routing the body for a full size humbucker.
Evaluation
Neck Position
The neck position quickly reveals why the Air Norton family has earned such a loyal following over the years. The Air Norton S avoids the overly thick or muddy character that can plague higher output neck pickups. Instead, notes remain well defined while carrying enough warmth to make lead playing feel effortless.
Clean tones have a smooth, rounded voice with plenty of harmonic content. Chords maintain separation, allowing extended voicings to remain intelligible instead of collapsing into a wash of low frequencies. The pickup responds well to changes in picking dynamics. This makes it comfortable for everything from mellow rhythm work to expressive lead passages.
Introducing gain adds sustain without sacrificing articulation. Single note lines develop a vocal quality that encourages phrasing rather than speed for its own sake. Legato passages remain fluid, while alternate picked runs stay focused. Even under higher gain settings, individual notes continue to occupy their own space.
One of the more pleasant surprises is how well-rounded the overall EQ feels. Bass response is full without becoming loose. The midrange carries enough authority to cut through a mix. And the upper frequencies remain smooth instead of becoming sharp or brittle. It is easy to understand why so many players choose this pickup specifically for neck duty.
Bridge Position
Moving the Air Norton S to the bridge creates an entirely different personality. Rather than becoming harsh or overly aggressive, it maintains much of the pickup’s controlled nature while shifting the emphasis toward stronger attack and tighter low end.
Rhythm playing benefits from excellent note definition. Power chords retain their shape, and complex chord voicings avoid becoming congested under distortion. Palm muted passages have enough punch to satisfy modern rock players without drifting into excessively compressed territory.
Lead tones remain smooth, although they naturally carry more bite than the neck position. Harmonics emerge easily, and the pickup tracks fast playing without feeling sterile. There is enough output to comfortably drive high gain amplifiers while still cleaning up well with the guitar’s volume control.
Players expecting the bridge position to behave like an ultra hot ceramic pickup may find the Air Norton S surprisingly restrained. Instead of overwhelming the front end of an amplifier, it focuses on balance and control. That approach rewards players looking for versatility instead of maximum output.
Perhaps the biggest takeaway is how convincing the pickup feels in both positions. Rather than sounding like a compromise because of its single coil footprint, the Air Norton S develops its own identity. It delivers the fullness expected from a humbucker while fitting naturally into a Strat style platform.
Specs
DCR – 11.434 K
Inductance – 6.848 H
Split – 6.26 K
Split – 5.189 K
Parallel – 2.835 K

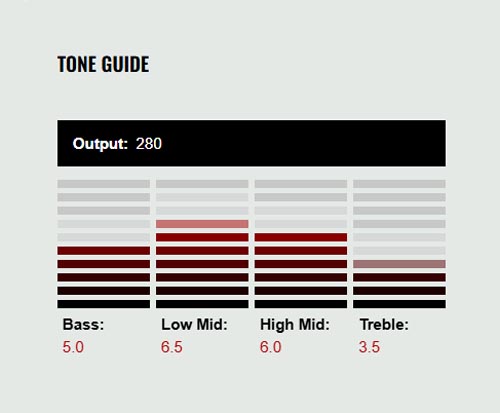

Output – 280 mV
Magnet – Ceramic
Demo
At this time, there are no official demos or samples for the Air Norton S. While there are plenty of amateur-level examples to be found, we are still waiting on an official example of how DiMarzio would like this to be represented.
When an official sample is published, it will be updated here.
Conclusion
The Air Norton S earns its reputation the old fashioned way. It doesn’t rely on massive output or an exaggerated EQ curve to get your attention. Instead, it delivers consistently musical tones that simply make you want to keep playing.
In the neck position, it produces the warm, vocal character that has made the Air Norton family a favorite among lead players. Chords remain clear, single note lines sustain naturally, and the pickup never drifts into muddy territory. Move it to the bridge, and it takes on a more aggressive personality with enough punch for hard rock and modern gain while avoiding the harsh top end that often comes with higher output designs.
What stands out most is that the Air Norton S never feels like a compromise because it fits into a Strat sized route. It has its own identity, offering genuine humbucker character while preserving the balance and responsiveness that make it enjoyable across a wide range of styles.
There are plenty of rail humbuckers that try to prove something the moment you plug them in. The Air Norton S takes a different approach. It simply sounds good, responds well to your hands, and quietly reminds you why DiMarzio has kept it in the lineup for so many years.
For reference, this Air Norton S DP180 humbucker pickup evaluation was conducted with the following: Fractal Axe-Fx II XL+ featuring Celestion Impulse Responses and Fractal MFC-101 MIDI Foot Controller. ADA MP-1 Tube Pre-Amp loaded with Tube Amp Doctor ECC83 Premium Selected tubes, using the ADA MC-1 MIDI Controller. Fryette LX II Stereo Tube Power Amplifier. Physical cabs use are Marshall 1960B, Mojotone British, and Peavey 6505 cabs loaded with Celestion Classic Series Vintage 30s and Classic Series G12M Greenbacks..
