Mojotone Solderless Strat Blender Harness

Who likes to try new pickups?  Show of hands?  Of course you do!  It can be one of the more cost effective ways to try a new tone.  Now… who likes to solder?



Yep.  I’m there with you.  And I have an awesome soldering station that I literally enjoy firing up.  But, come on… breaking out the solder can get old.  Of course, what about players that don’t know or would not care to solder?  Nothing wrong with that.  Many houses are still standing from people that know their limitations with a soldering iron.  LOL!

It’s a good thing we have some solderless options to choose from!  For example, our pals at Mojotone have a hearty selection of solderless harnesses to choose from.  You’re covered for multiple Tele and Les Paul and SG and Strat styles.  And it’s one of the Strat styles we are looking at today!

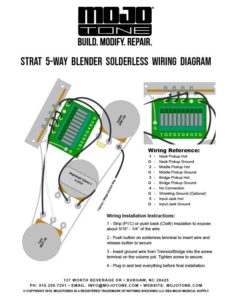

Mojotone Solderless Strat Blender 5-Way Diagram
Mojotone Solderless Strat Blender 5-Way Diagram

The Solderless Strat Blender Harness is a very simple direct drop-in to your existing pickguard.  Pull it all out of there!  You don’t need the 5-way switch or even the output jack.  New ones are included.  The only wiring you really need to hold on to is your ground wire.  If you don’t even have a soldering iron, don’t sweat it.  Just use your wire cutter!  See… totally solderless.

For this application, I’m putting the Solderless Strat Blender Harness in with a new set of Mojotone ’59 Clone Singlecoil pickups (review on those coming soon!).  These pickups have push-back cloth insulation, so wire strippers really aren’t even necessary.  Side note:  the output jack that comes with the harness is pre-wired with the same type of push-back wiring.

At this point, it is as simple as putting the ends of the wires in to the assigned terminal connection at the 5-way switch.  The terminal is wired for ground, so your pickup’s ground wires go in there too.  That makes for a bit less spaghetti in the cavity.  HaHa!  How about your shiny new Switchcraft output jack?  Those leads go to that same terminal as well.

Let’s not forget your ground wire from the bridge!  It has it’s own home via a grounding terminal on the volume pot.  Just tighten down a screw.  And still no soldering.  If you do have your shielding grounded, the terminal at the 5-way has a optional slot for that as well.

It’s all super simple and very clean.  The only thing you’ll miss is the smell of solder stuck in your nostrils for the rest of the day!  LOL!

Anything else is going on?  The 250k CTS pots come with a treble bleed at the volume and a Vitamin T oil-filled .047 uf cap at the tone.  The traditional spot for the 2nd tone is where the Blender control lives.  I covered one of Mojotone’s Blender knobs in the article about the ’58 Quiet Coil HSS Pickguard.  In this Strat Harness, positions 1 and 2 blend in the neck and positions 4 and 5 blend in the bridge.  Check it out:



Blender on 10
Position 1: Bridge
Position 2: Bridge & Middle
Position 3: Middle
Position 4: Middle & Neck
Position 5: Neck
Blender On 0
Position 1: Bridge – Neck blended in
Position 2: Bridge & Middle – Neck blended in
Position 3: Middle
Position 4: Middle & Neck – Bridge blended in
Position 5: Neck – Bridge blended in



While not a specifically exact representation of the Blender on this set of 3 single coils, I can throw down with this video of the Blender on a HSS set.  Check it out:



That should give you a solid idea of what’s going on with the Blender control options.  Tons of tone to choose from.  Definitely give this a try.  I installed this harness in my American Standard Strat without a hitch.  If you don’t solder or aren’t in the mood to be a fire hazard (HaHa!), the Mojotone Solderless Blender Harness is meant for you.
